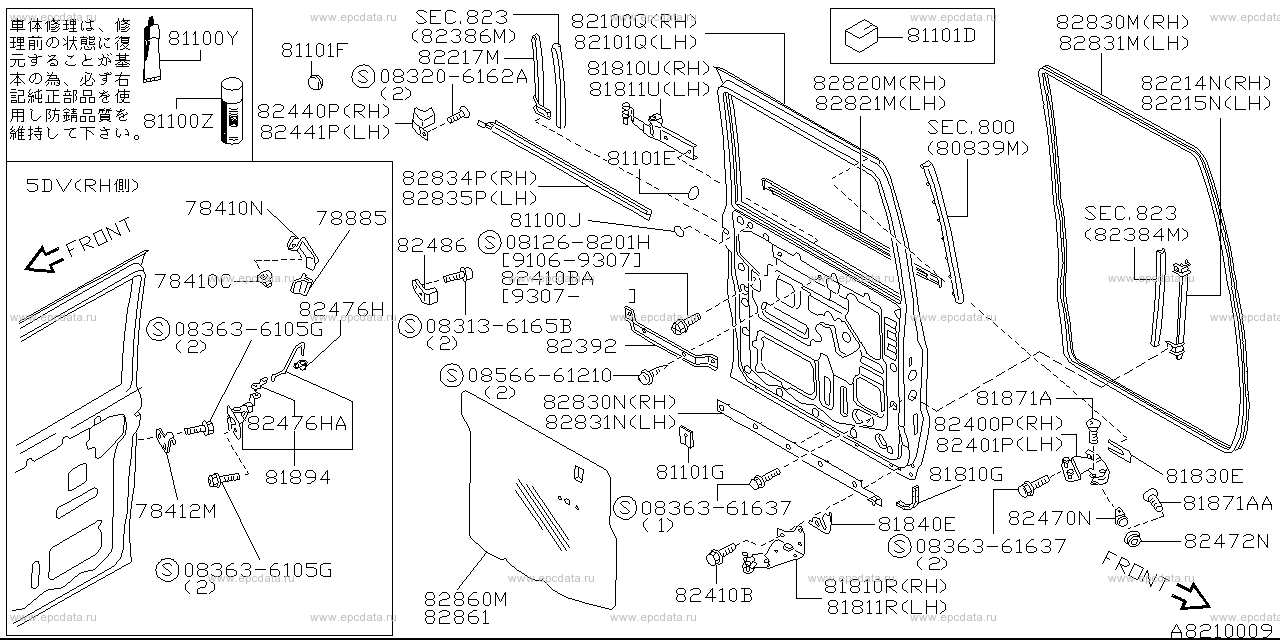

| 081268201H
083136165B
083206162A
083636105G
0836361637
0856661210
78410C - nut, cap
78410N - lever, rear door stopper
78412M - bracket, slide door stopper
78885 - grip, hinge
81100J - blind label, slide door
81100Y - paint sealer
81100Z - metal keep wax
81101D - insulator, remote control rod
81101E - grommet
81101F - plug
81101G - silencer, slide door
81810G - protector, slide door roller
81810R - roller assembly, slide door lower RH
81810U - roller assembly, slide door rear RH
81811R - roller assembly, slide door lower LH
81811U - roller assembly, slide door rear LH
81830E - shim, roller
81840E - shim, roller
81871A - screw
81871AA - screw
81894 - stopper, slide door
82100Q - door assembly, slide RH
82101Q - door assembly, slide LH
82214N - sash, rear door lower front RH
82215N - sash, rear door lower front LH
82217M - sash, rear door lower rear LH
82392 - bracket, slide door window
82400P - roller, slide door upper RH
82401P - roller, slide door upper LH
82410B - bolt
82410BA - bolt
82440P - stopper, rear door upper RH
82441P - stopper, rear door upper LH
82470N - male assembly, dovetail upper
82472N - female assembly, dovetail upper
82476H - holder, rod
82476HA - holder, rod
82486 - stopper, slide door lower
82820M - molding, rear door outside RH
82821M - molding rear door outside LH
82830M - weather strip, slide door RH
82830N - weather strip, slide door lower RH
82831M - weather strip, slide door LH
82831N - weather strip, slide door lower LH
82834P - seal, slide door inside RH
82835P - seal, slide door inside LH
82860M - screen, sealing slide door
82861 - screen, sealing rear door LH |
